SPECIFICATIONS

Alarm Type: FTP Photo,Email Photo,Local Alarm

Analog HD Playback Resolution 1: 5MP Lite/3 MP/1080p/720p

Analog HD Playback Resolution 2: VGA/WD1/4CIF/CIF

Analog HD Recording Resolution 1: 5MP Lite/3MP/1080p/720p

Analog HD Recording Resolution 2: VGA/WD1/4CIF/CIF@12fps

Audio Compression Format: G711A

Audio Input: 1 Channel

Audio Output: 1CH RCA

Backup Type: Hard Drive

Communication Interface: NONE

DVR Power Supply: DC12V

Dimensions(W x H x D): 260 * 222 * 45 mm

HDD Capacity: 4 TB,3TB,2TB,1TB,Up to 6TB capacity

Hard Drive Size: 3.5''

Hard drive Interface Type: SATA

High-concerned chemical: None

IP Mode: Dynamic IP address

IPC Playback Resolution: Up to 6MP

IPC Recording Resolution: Up to 6MP

Key Features: (only support AHD 1080P cameras!)

Max Playback Channel: 8-ch

Model Number: DW81KT

Network Interface: RJ45 10/100M

Network interface: RJ45x1(10/100M)

Onvif: Support

Smart home platform: Other

Supported Mobile Systems: iPhone OS,Android

Supported Operating Systems: Microsoft Windows 98,Microsoft Windows 7

Two-way Audio: No

Video Adjustment: Brightness Adjustable

Video Compression: H.264+/H.264/H.265/H.265+

Video Input: 8CH Analog HD/Analog + 2CH IP camera

Video Input Interface: BNC (1.0 Vp-p, 75Ω)

Video Output: HDMI and VGA Up to 1080P

Video Resolution: 5 MP

Video Standard: NTSC/PAL

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Wireless Security: wep

e-Cloud(P2P): No

· Up to 3K high definition live viewing

· Up to 3K Lite recording & playback

· Advanced H.265+ Video Compression

· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1

· Supports iPhone、iPad、Android mobile remote monitoring

· Deep learning based human and vehicle targets classification of Motion Detection 2.0 for all analog channels

· Quick search by object or event type

· Audio via coaxial cable

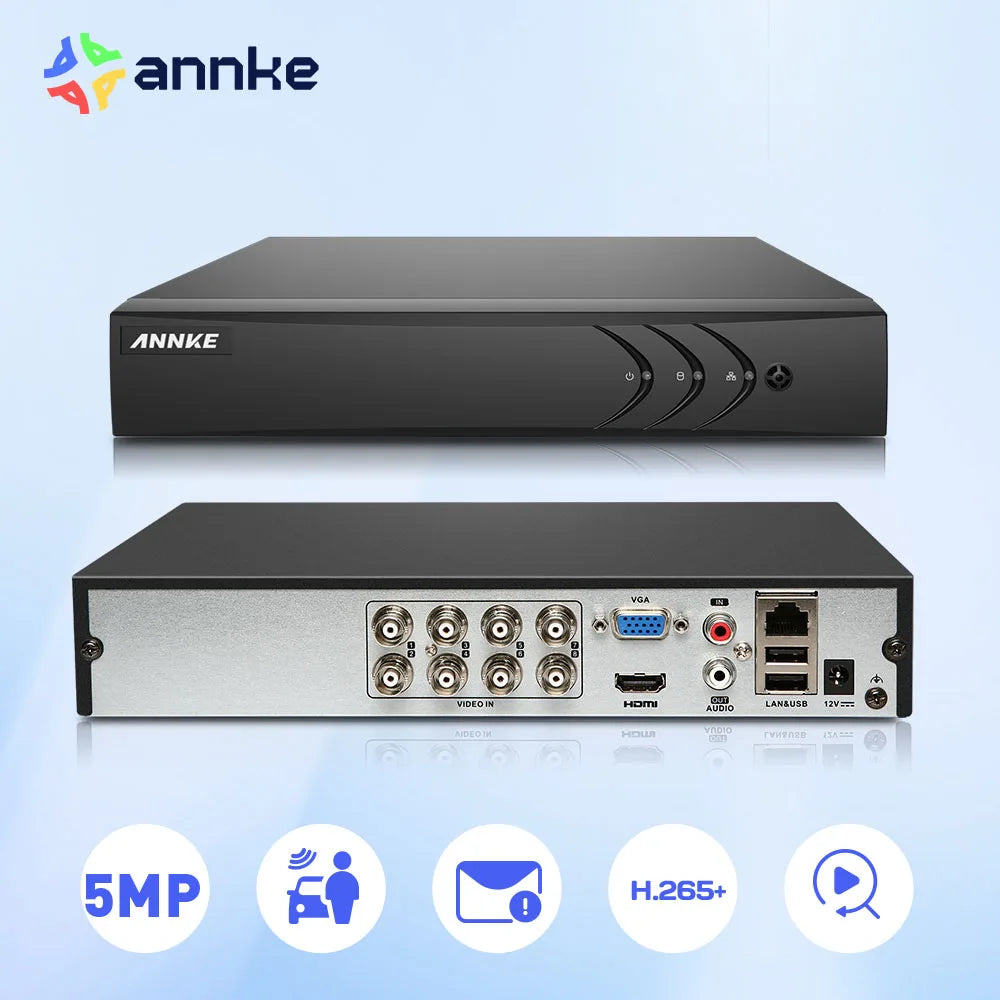

DVR
Video & Audio	Video Compression	H.264+/H.264/H.265/H.265+
	Video Input	8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on)
	Video Output	HDMI and VGA Up to 1080P
	Audio Input	1-ch RCA,8-ch via coaxial cable
	Audio Output	1-ch RCA
	Supported Camera Types	Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p; Support AHD Input: 4MP, 1080p, 720P; Support CVI Input: 4MP, 1080p, 720P; Support CVBS Input; Support IP Video Input：6MP/5MP/4MP/3MP/1080P/720P
	Analog HD Playback Resolution	3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps
	IPC Playback Resolution	Up to 6MP
	Max Playback Channel	2-ch
	Protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS
	Motion Detection 2.0	All analog channels support human and vehicle detection to reduce false alarm
Hard Drive	HDD	1 SATA interface
	HDD Capacity	Up to 10TB capacity
External Interface	Network interface	1, RJ45 10M/100M self-adaptive Ethernet interface
	USB	USB2.0x2
General	Operating Power	DC12V,≤ 12W (without HDD)
	Working Temperature	-14 °F – 131 °F /-10 °C – 55 °C
	Dimensions(W x H x D)	260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
	Weight (without hard disk)	≤ 1 kg (2.2 lb)(without HDD)
